Mclaren 720S 3D scan & CAD model

Professional-Grade McLaren 720S 3D Scan & CAD model for Engineering, Motorsport & Aerodynamic Development

Access a high-resolution McLaren 720S 3D scan captured using a Creaform MetraSCAN Black with 0.1 mm accuracy, delivering an exceptionally detailed digital representation of one of the most advanced supercars ever produced.

This dataset has been created specifically for engineers, aerodynamicists, CFD analysts, motorsport teams, vehicle designers, and aftermarket manufacturers who require accurate geometry for simulation, reverse engineering, component development, and digital design workflows.

Unlike typical automotive scan datasets, this package includes the complete exterior and underbody geometry of the McLaren 720S, providing the level of detail necessary for professional aerodynamic and engineering applications.

What’s Included

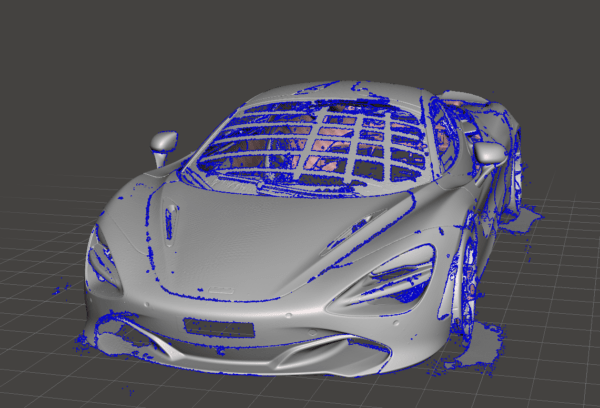

Full McLaren 720S Exterior 3D Scan

• Complete vehicle body geometry
• Front bumper, splitter, fenders, doors, mirrors, roof, and rear bodywork
• High-density mesh suitable for reverse engineering and CAD surfacing
• Accurate representation of all exterior aerodynamic surfaces

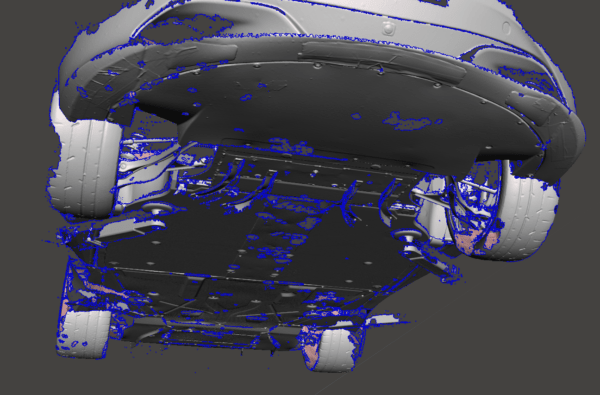

Full Underbody 3D Scan

• Complete floor geometry
• Front undertray
• Diffuser and rear underbody surfaces
• Essential data for CFD and aerodynamic development

Active Rear Wing – Two Configurations

The dataset includes scans of the factory active rear wing in both operating positions:

• Rear wing lowered
• Rear wing deployed

This allows engineers and aerodynamicists to accurately evaluate both vehicle configurations and integrate the geometry directly into CFD workflows.

Optional McLaren 720S CAD Model

For customers requiring native engineering geometry, we offer a fully reverse-engineered McLaren 720S CAD model generated directly from the scan data.

CAD Model Features

• Solid CAD geometry
• STEP (.STP) format
• Watertight construction
• CFD-ready surfaces
• Reverse engineered from the original scan
• Suitable for aerodynamic analysis, packaging studies, product development, and manufacturing workflows

The CAD model is designed to significantly reduce preparation time compared to working directly from mesh data.

Scanning Equipment

All scan data was captured using a:

Creaform MetraSCAN Black

• Certified metrology-grade scanning system
• Up to 0.1 mm measurement accuracy
• High-resolution capture of complex automotive surfaces
• Industry-standard solution for motorsport and automotive engineering

Ideal Applications

• CFD simulation
• Aerodynamic development
• Motorsport engineering
• Reverse engineering
• Vehicle digitization
• Body kit design
• Composite part development
• Wind tunnel model preparation
• Digital twin creation
• Academic and research projects

Data Quality

Every dataset is processed to deliver clean, accurate geometry suitable for professional engineering use.

Whether you need a McLaren 720S 3D scan for reverse engineering or a fully developed McLaren 720S CAD model for CFD and product development, this package provides one of the most complete digital representations of the vehicle available.

Deliverables

Standard Package

• Full McLaren 720S exterior scan
• Full underbody scan
• Rear wing lowered configuration
• Rear wing deployed configuration

CAD Upgrade Package

• Everything in the Standard Package
• Reverse-engineered watertight CAD model
• STEP (.STP) format
• CFD-ready geometry
